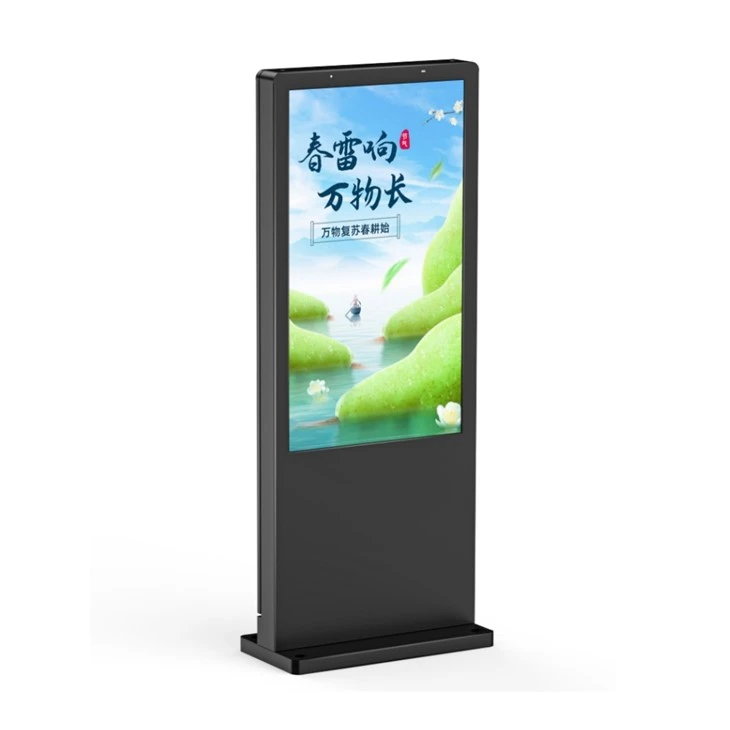

Outdoor Digital Totem 55"

•Screen Size: 55"
•Touch Screen:Optional
•Installation: Floor Standing
•Outdoor Protection: IP55/IP65(optional)
•Protection Glass: Ultra-clear/AR/AG glass (optional)
•Brightness: 1500nits~2500nits(optional)
•Resolution:3840*2160 4K
•OS: Android/Windows(optional)
•Support to add additional Solar-powered
•Metal Shell:Steel with outdoor application treatment
•Model Color: Standard Matte black, Support Customization

Send Inquiry

Description

ZYO 55 Inch Outdoor Digital Totem is designed based on full outdoor protection level and with Key Features:

Durability and Weather Resistance: Outdoor kiosks are typically constructed from robust materials like steel, aluminum, or concrete to endure outdoor conditions.

They incorporate features like weather-proof enclosures, rust prevention, and temperature control mechanisms.

Sunlight Readable Displays: High-brightness screens with anti-glare coatings ensure readability in bright sunlight.

Interactive Functionality: Support to add touchscreens, enabling users to access information, navigate through menus, and engage with content.

Connectivity Options: Support wifi/LAN/4G/5G networking for accessing real-time data, updating information, and managing content remotely.

Security Features: Our Outdoor screens includes security measures like tamper-resistant enclosures and secure locks to prevent vandalism and theft.

Customization: We support customization design, branding, and additional features like cameras or payment systems.

Items		Specification
Screen Part	LCD Panel	55 Inch
	Display Area	1209.6(W)×680.4(H) mm
	Resolution	3840*2160 4K
	Display Ratio	16:9
	Brightness	1500~2500nits
	Visual Angle	178°/178°
	Protection Glass	Ultra Clear Tempered Glass (Optional AG/AR)
Touch Screen		Capacitive Touch IP55 level.
System Built-in	OS	Android/Windows (Optional)
	RAM	4G/8G/16G (Optional)
	Storage	16G/32G/64G/128G/1T(Optional)
	Networking	LAN/WIFI/4G/5G (Optional)
	Ports	USB/HDMI/VGA
Temperature Control System	Cooling System	Smart Industrial level Fans
	Heating System	Smart heating system (optional)
	Operating Temperature	-30°C ~ +45 °C
Weather-Proof Outdoor Protection	IP Rate	IP55/IP65 (Optional)
Weather-Proof Outdoor Protection	Design	Water-proof, dust-proof, corrosion proof, explosion proof, ultraviolet ray proof, security lock, fungus proofing.
Other Electronic System	Speakers	10w speaker x 2. Water-proof with IP55 level
	Thunder protector	YES
	lightning protector	YES
	Leakage Protector	YES
	Timer	YES. Support set up timing based on daily, weekly or monthly
Voltage	AC90~260V 50/60Hz
Current	Maximum 1.8A~3.7A
Power Consumption	Maximum 350W~360W
Net Weight	85KG
Model D immersion (LWH)	820mm x 125mm x 1980mm (Base 820*480mm)
Customized Design	Support
Customized Color	Support
Solar-powered Solution	Support

ZYO is a Leading Manufacturer who specialized in both indoor and outdoor digital signage kiosk solutions. We support customization projects. We have volume shipments and after-sales onsite support experiences in Europe and North America countries. Please contact our project directory for details spec or further business discussion.

Contact: Sophia Zhang

Email: sophiazhang@zyulcd.com

Microsoft: sophia201205

outdoor digital advertising screen

waterproof outdoor digital signage

WechatIMG2749

Q&A

Q: Are you realy digital display factory or trading company?

A: We are the original LCD Digital Signage manufacturer in Shenzhen China. Our workshops are covering 11,000m².

Q: Do you support customization design?

A: Yes, we support full customization design solution. We have High-quality sales service team, R&D tech team, QC team and production team.

We provide high quality and effeicent support.

Q: The capbility of your after-sales service?

A: We provide technical details introduction and clearly user manual. We also have experiences onsite after-sales technical support on both of Indoor and Outdoor digital signages in France, Germany, USA and Canada.

Q: Which country your Outdoor digital signage have been shipping to?

A: Germany, France and Canada.

Q: Can we put our own logo?

A: Yes, we support customer logo based on your design requirement.

Q: How long is for your production lead time?

A: The standard L/T is 22 days.

Q: What is your production capacity?

A: We have three big workshop with 9000 square meter. Skilled tech and production team. We can meet any requirement for production capacity.

Q: How long for producing one sample?

A: Production lead time is 20 days for sample.

For customization design, sample L/T need around 22 days.

Q: Can you do door to door delivery if I order a sample?
