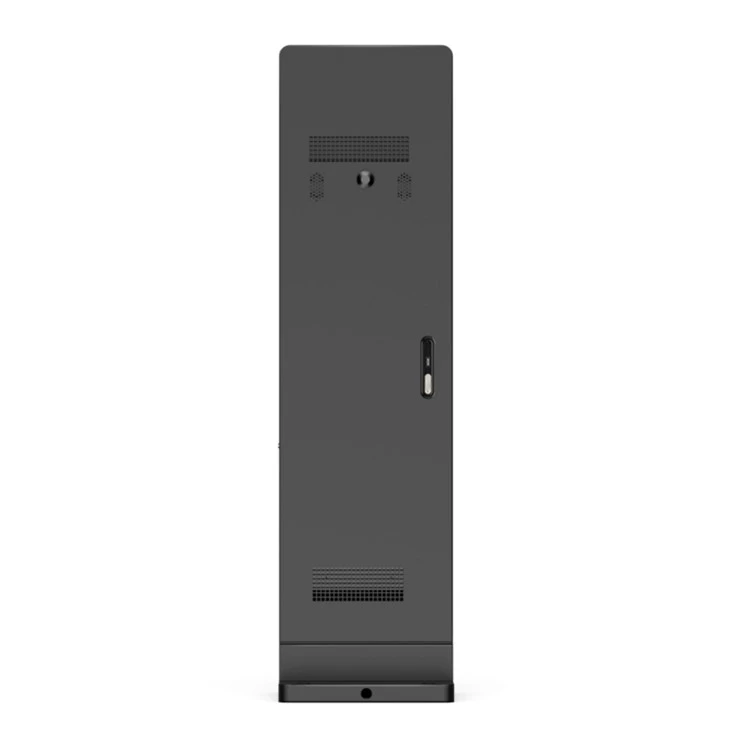

32 Inch Outdoor Digital Signage Display

The 32 Inch Outdoor Digital Signage Display is a commercial-grade, weather-resistant display engine built for 24/7 continuous operation in challenging environments.

Engineered for outdoor advertising, smart transit systems, quick-service retail, and public communications, this display combines high-brightness panel technology, IP65 sealed enclosure protection, and an intelligent thermal control system. The compact 32-inch form factor offers the perfect solution for space-constrained locations and close-viewing applications where larger screens are impractical-delivering higher energy efficiency, reduced mounting strain, and lower overall deployment costs.





Item	Specification
Product Type	32 Inch Outdoor Digital Signage Display
Display Technology	Commercial LCD Panel
Screen Size	32 Inch
Resolution	1920 × 1080 Full HD (4K Optional)
Brightness	1500 / 2000 / 2500 / 3000 / 3500 nits Optional
Contrast Ratio	3000:1
Viewing Angle	178° Horizontal / Vertical
Refresh Rate	60Hz
Display Orientation	Landscape / Portrait
Glass Protection	IK10 Anti-Vandal Tempered Glass
Glass Thickness	5mm / 6mm Optional
Waterproof Rating	IP65
Automatic Brightness Adjustment	Optional
Touch Function	PCAP Multi-touch Optional
Operating System	Android / Windows / Linux Optional
Processor & Memory	Optional Configuration
Storage	Optional Configuration
Network Connection	LAN / WiFi / 4G LTE / 5G Optional
Interface	HDMI / USB / LAN / RS232 / Audio Optional
Speaker	Built-in Speaker Optional
Operating Temperature	-30°C to +50°C
Storage Temperature	-40°C to +60°C
Panel Lifetime	Up to 50,000 Hours
Power Supply	AC100-240V
Power Consumption	Based on Brightness Configuration
Maintenance Access	Front / Rear Optional
Compliance	CE / FCC / RoHS Available
Operation Mode	24/7 Continuous Operation



Sunlight-Readable Performance (Up to 3,500 Nits)
Delivers crystal-clear optical output even under harsh direct daylight. Fitted with anti-glare (AG) tempered glass to minimize light reflection and enhance visual contrast.

IP65 All-Weather Sealed Enclosure
Completely sealed against rain, dust, moisture, and windborne particles, significantly reducing maintenance overhead and internal degradation.

Intelligent Climate & Thermal Management
Integrated temperature sensors automatically toggle internal cooling and heating elements to combat extreme heat, winter frost, and internal condensation.

Industrial 24/7 Reliability
Built with commercial-grade components and an industrial LCD cell rated for a long service lifespan of up to 50,000 hours.




Outdoor Advertising Networks: High-impact ad placements for media operators in high-traffic outdoor locations.
Retail Storefront Displays: Entice passersby with promotions, seasonal offers, and brand messaging right at the entrance.
Drive-Thru & Quick Service Restaurants: Clear outdoor menu boards designed to operate continuously under daylight.
Gas Stations & EV Charging Hubs: Displays price updates, promotional ads, and user instructions next to pumps and chargers.
Transportation Hubs: Real-time arrival/departure information, announcements, and passenger navigation at bus stops, train stations, and airports.
Smart City & Municipal Projects: Public service announcements, tourist info kiosks, emergency alerts, and community messaging.





The display supports versatility across multiple installation methods:
Wall Mounted Installation: Storefront exteriors, building facades, entryways, and commercial centers.
Floor Standing Installation: Malls, hotel plazas, outdoor exhibitions, and pedestrian zones.
Pole Mount Installation: Smart city streets, bus stops, railway platforms, and gas stations.
Outdoor Kiosk Integration: Seamless integration into custom multi-functional interactive enclosures (e.g., ticketing, vending, access control).




Easily manage single screens or large-scale display networks through flexible platform integration:
Centralized Remote Management: Push content updates, set playback schedules, manage screen power, and monitor hardware status remotely.
Multi-Format Playback: Supports video, dynamic graphics, web pages, live feeds, dynamic menus, and split-screen layouts.
Connectivity Options: Ethernet (RJ45), high-speed WiFi, 4G LTE, and 5G cellular modules.

CMS Compatibility: Open system architecture compatible with popular commercial CMS platforms and third-party software.





Hardware Customization: Brightness levels (1500–3500 nits), touch sensors, OS platform (Android/Windows/Linux), RAM/Storage upgrades, and connectivity modules.
Appearance & Design: Custom logo branding, enclosure color matching, powder coating finish, cabinet shape, and mounting bracket design.
Software Integration: Pre-installed CMS software, custom UI/UX design, remote management tools, and API integration.




To ensure high reliability in field operations, every display undergoes a 5-stage QC process:
Incoming Material Inspection (IQC): Stringent testing of panels, power supplies, controller boards, and housing components.
Assembly Inspection (IPQC): Verification of internal wiring, thermal insulation, structural sealing, and waterproof gaskets.
Functional Testing: Thorough performance evaluation of image quality, software stability, touch response, and network connectivity.
Environmental & Reliability Testing: Complete IP65 waterproofing tests, high/low-temperature chamber cycles, and a minimum 48-hour continuous burn-in/aging test.
Final Outgoing Inspection (OQC): Full cosmetic inspection, packaging verification, and accessory check prior to shipping.





We provide end-to-end technical and export assistance for international engineering projects and bulk procurement:
Customized technical drawings, CAD files, and IES photometric specs for tender bids.
Climate-specific hardware consultations (high-salinity coastal areas vs. extreme cold climates).
Secure export packaging (reinforced wooden crates/flight cases) compliant with international shipping standards.
